HO Scale Little Lights PL Pedestal Signal

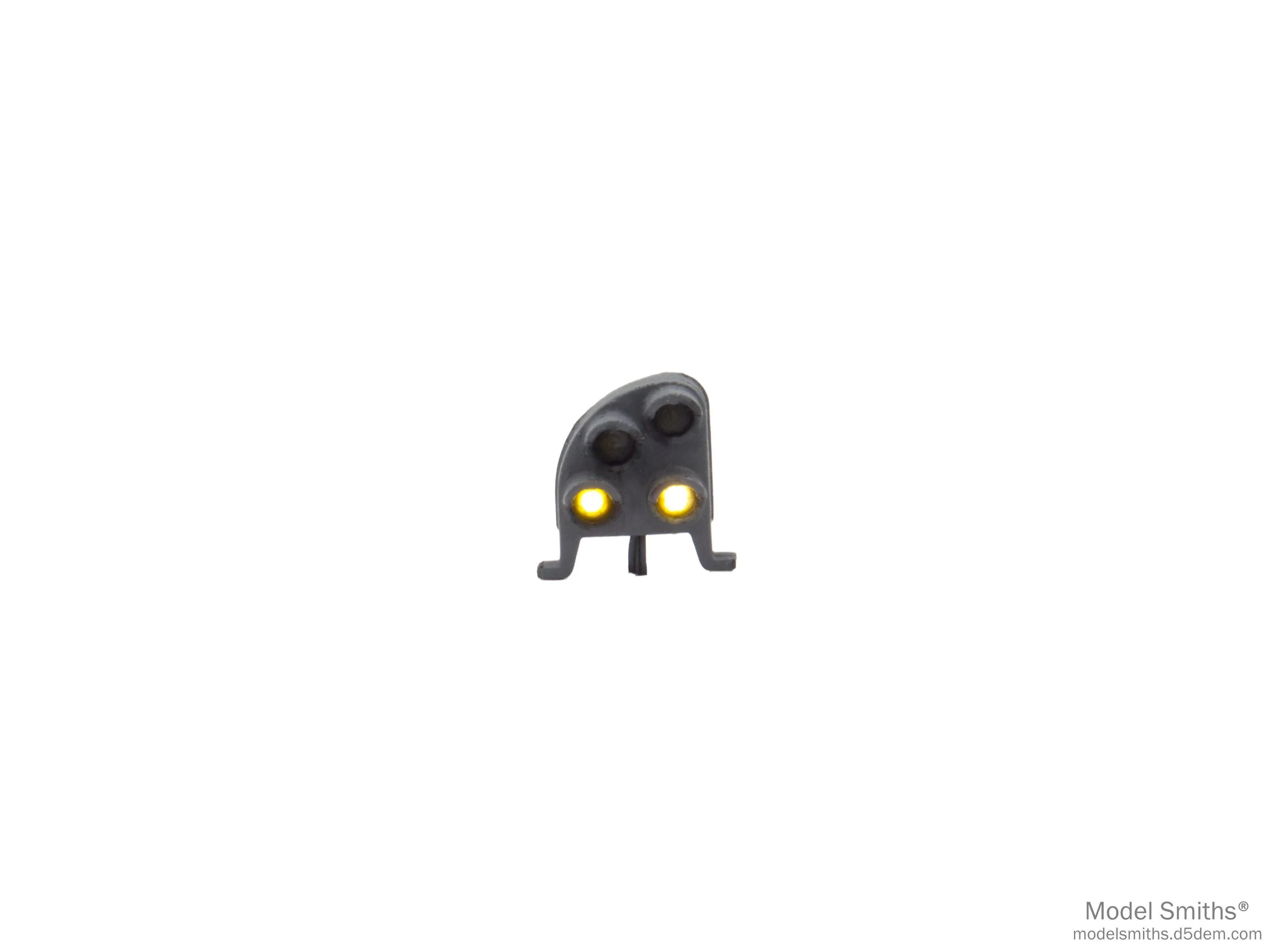

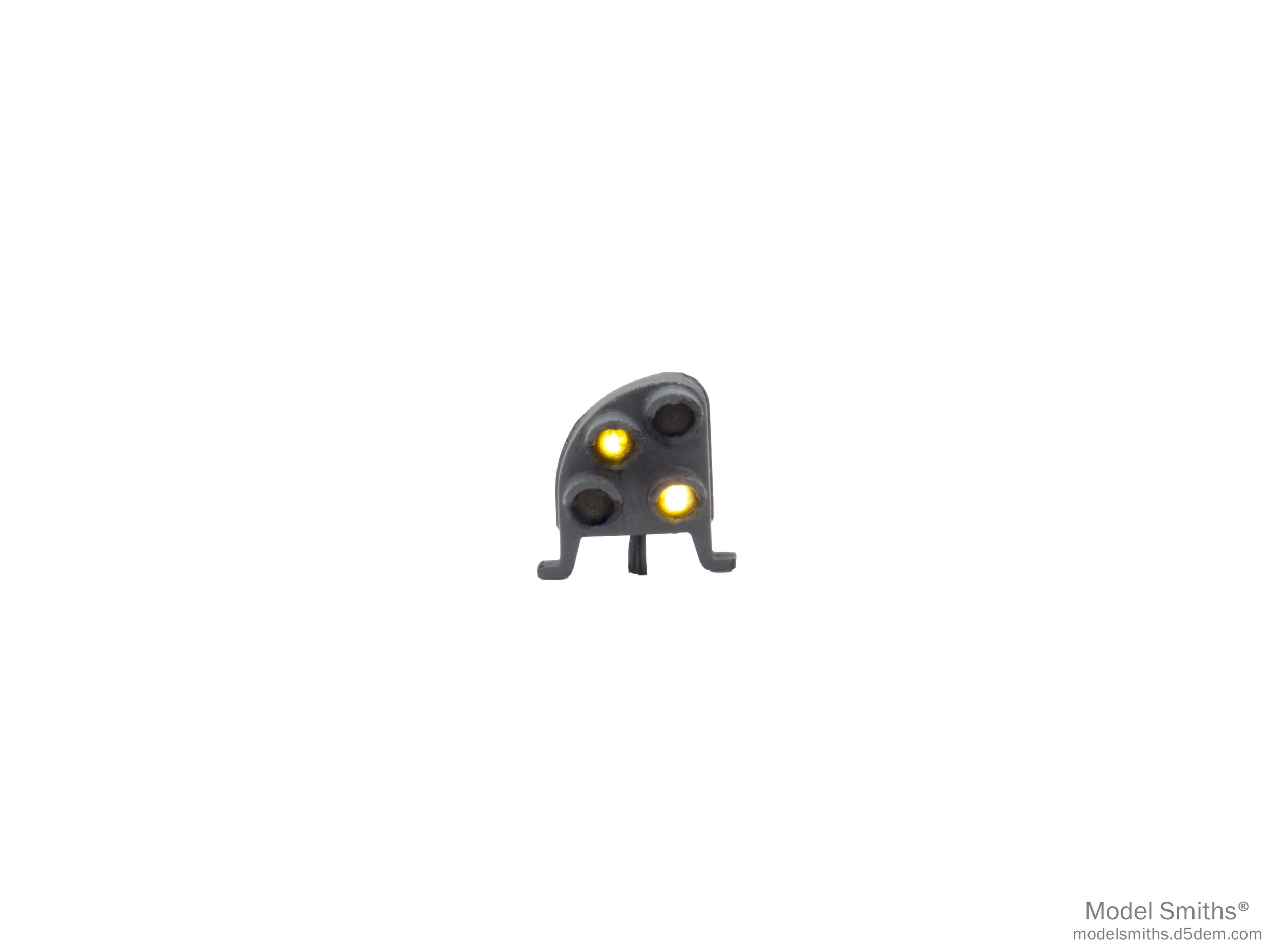

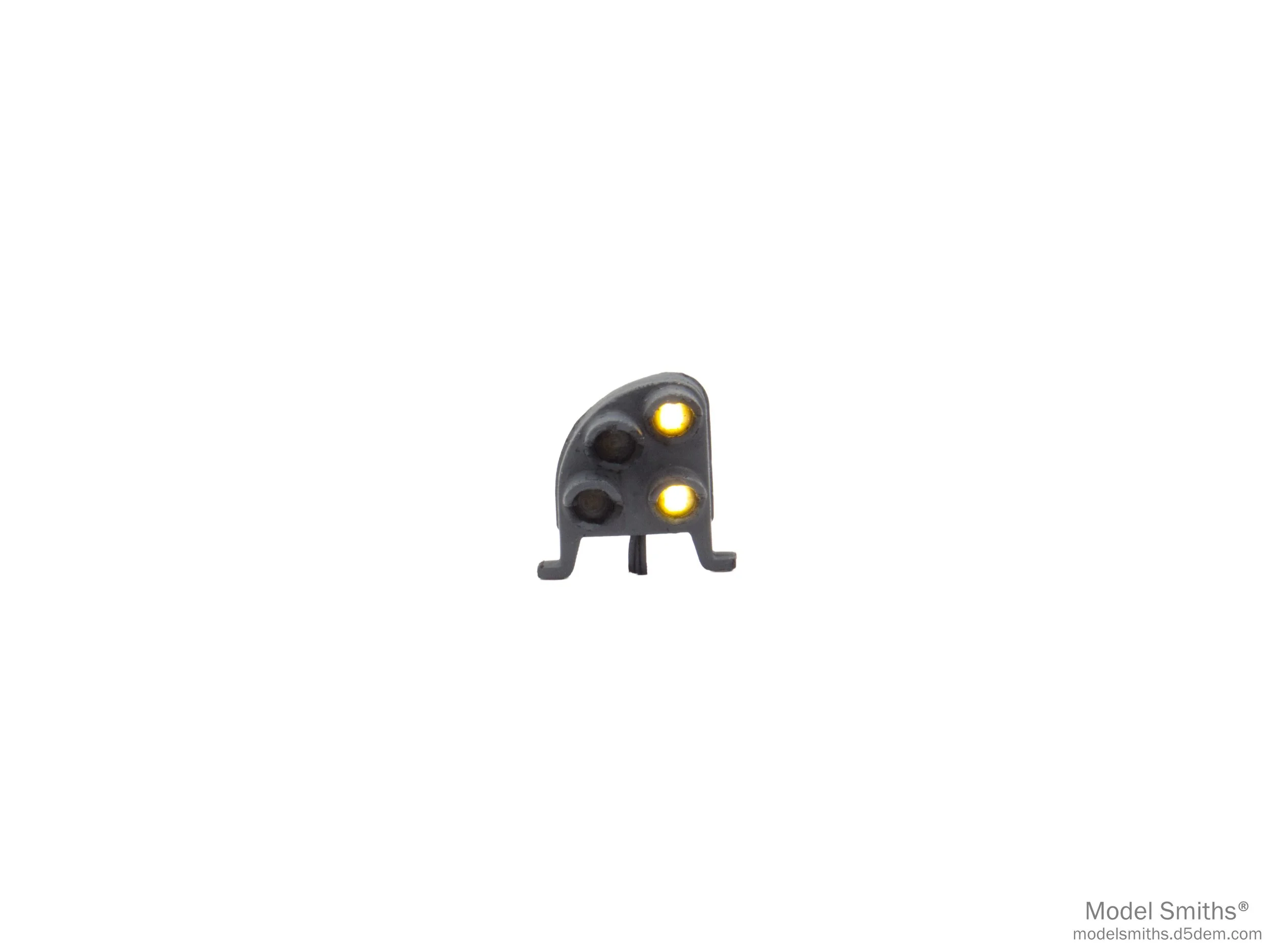

These are possibly the first true scale, fully assembled and functional PRR pedestal signals available in HO scale. The design for these signals is taken straight from original technical drawings of the real PL-5 signal. There are no compromises in this design; this is a true scale signal. While the real signal technically uses white lights rather than yellow lenses, these models use yellow LEDs. These LEDs generally look more authentic than white LEDs do. While it's impractical to exactly match the color of the real signal, these models are as close as possible.
This signal can be prepared in any configuration, on a made-to-order basis. These signals are priced based on the number of lights, as in certain conditions, specific lights are blanked out. This flexibility allows for the highest degree of authenticity and historical accuracy in a model railroad or diorama. The full 8-light signal is standard, however this signal is available in any possible variation. When adding a signal to your shopping cart, please fill in the pop-up form outlining the specifics of the signal you need.
These signals come with a latex masking pre-applied over each lens. This mask protects the lens from paint and weathering materials. This makes it extremely simply to paint and weather the model out of the package! Once painting is complete, simply remove the mask with a pair of fine tweezers, leaving the pristine lenses underneath.
This model comes pre-wired, so there is no need to fight with small LEDs or wires! Each model uses 38 gauge wires to power the LEDs. This signal is prepared in a common anode configuration, in which a common red wire connects to the positive anode side. Each LED has its own yellow cathode wire, so any of the LEDs can be powered. The wires are approximately 24" long and pre-tinned, making it quick and easy to install on a layout!
This model uses 2 volt LEDs rated at 20 mA. To power the signal at 5 volts, resistors larger than 150 ohms are required. To power the signal at 12 volts, resistors larger than 500 ohms are required. We recommend using 560 ohm resistors.
We understand that on the PRR and other modern railroads, there are more unique variations of these signals. If there is a specific configuration you need that is not in our catalog, please contact us. We will be pleased to help develop a signal to meet your specific needs!
