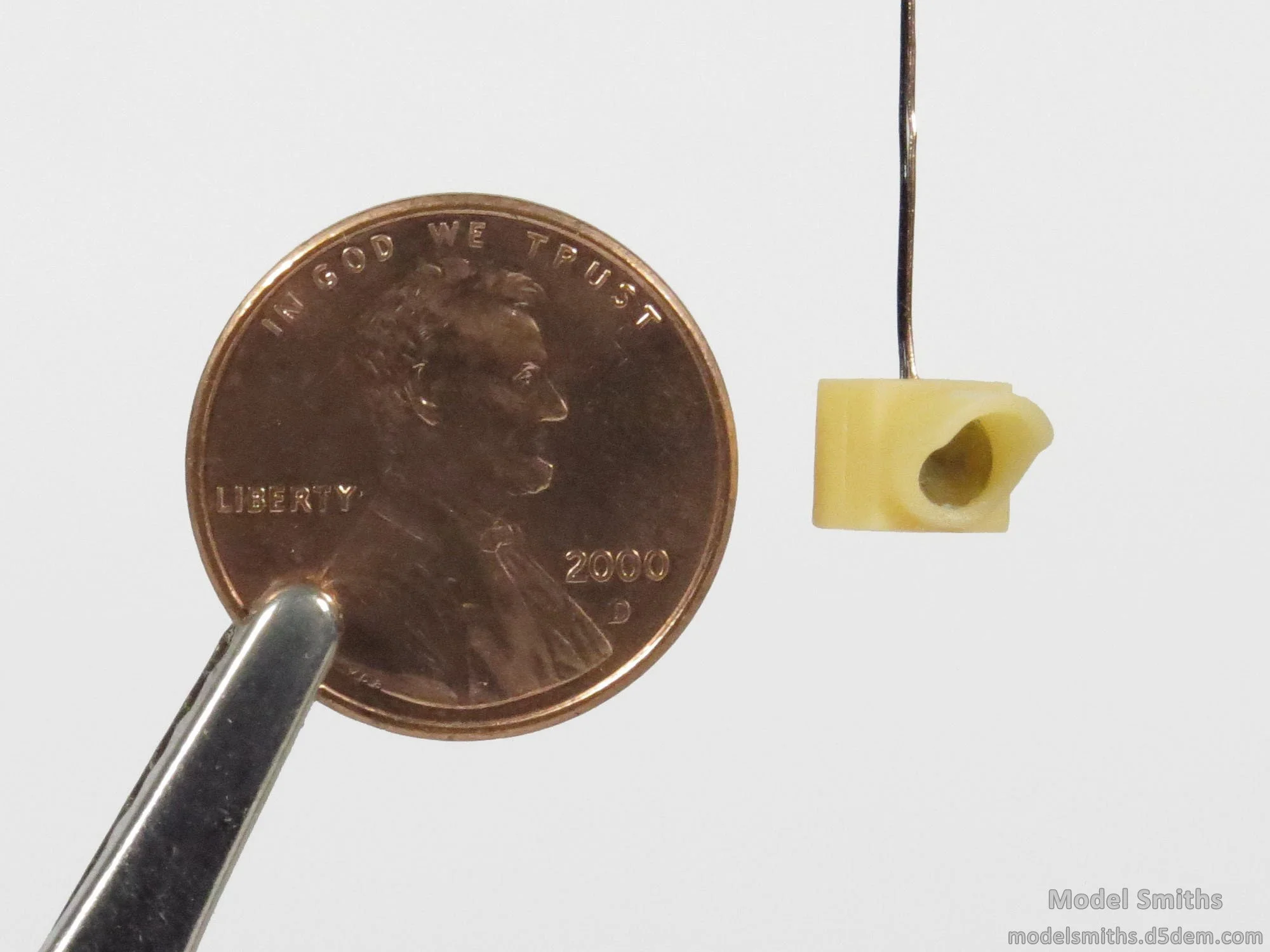

Scale 1 Light Yellow Traffic Signal
These scale traffic lights are just what you need to bring life and realism to your model railroad or diorama. These lights are designed from the ground up to provide an accurate, true-scale replica of traffic signals seen in real life. With accurate LED colors and lenses, these lights provide a pleasing glow that will set your model apart. With a wide range of variations and scales, we have exactly the right light option for your application. Gone are the days of cartoonish, oversized lights with incandescent bulbs!
These scale traffic lights are just what you need to bring life and realism to your model railroad or diorama. These lights are designed from the ground up to provide an accurate, true-scale replica of traffic signals seen in real life. With accurate LED colors and lenses, these lights provide a pleasing glow that will set your model apart. With a wide range of variations and scales, we have exactly the right light option for your application. Gone are the days of cartoonish, oversized lights with incandescent bulbs!
These scale traffic lights are just what you need to bring life and realism to your model railroad or diorama. These lights are designed from the ground up to provide an accurate, true-scale replica of traffic signals seen in real life. With accurate LED colors and lenses, these lights provide a pleasing glow that will set your model apart. With a wide range of variations and scales, we have exactly the right light option for your application. Gone are the days of cartoonish, oversized lights with incandescent bulbs!
Key Details At-A-Glance
Light Configuration: Yellow
Color: Yellow
Dimensions (excluding the tin bezel):
O Scale (1:48)
0.20" x 0.22" x 0.39"
S Scale (1:64)
0.15" x 0.17" x 0.29"
HO Scale (1:87)
0.11" x 0.12” x 0.22"
LED Configuration: Common Cathode (Common Negative)
Number of Wires: 2
Wire Length: About 2 Feet
Wire Gauge: 30 AWG
Operational Voltage Range: 5 VDC to 12 VDC
Current-Limiting Resistor Value: 560 ohms
Installation Instructions
Though our traffic lights are made from a durable yellow resin, a more realistic effect can be achieved by painting it. A small amount of light bleed-through naturally occurs from the LEDs, however a layer of paint will reduce this. Be careful not to paint over the lenses though!
Our traffic lights require a current-limiting resistor to work properly, which is included. If the light is connected to power without a resistor in place, this will instantly damage the light. To safely power the signal, connect one end of the resistor to the black wire, connect the other end to zero volts (ground), then connect the yellow wire from the light to positive voltage. The resistor included with the light is designed to work with power supplies up to 12 volts.
If this signal is being used with our Little Light Controller, the connections are simplified! The current-limiting resistors are built into the controller, allowing for a direct connection between the traffic signal and the controller. See the manual for our controller for more details.
LED Technical Data
Brightness Rating: 10 mcd
Diode Voltage: 2 VDC
Maximum Rated Current: 20 mA
Yellow LED Wavelength: 585 nm
